IDECO T-500, T-800 & T-1000

Product

Mud pump parts

Fluid End Parts

Fluid End Module

Valve

Liner

Piston

Rods and clamps

Mud pump power end components

The pand designs are:
  • Emsco
  • Gardner-Denver
  • National
  • Oilwell
  • Ideco
    • Hot products:
  • Emscoarctile

    • IDECO T-500, T-800 & T-1000

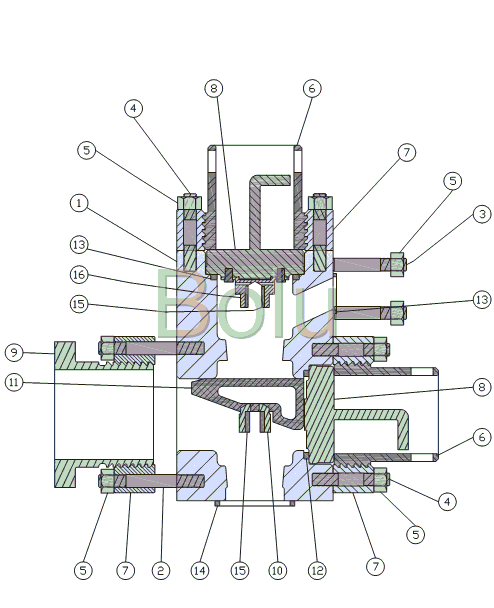

    Item



    Part No.



    Description

    		 Qty

    per Pump
    1 BL-551-458 Fluid Module, Only (Studded Included Items 1 – 5) 3
    2 BL-551-410-01 Stud – Frame 24
    3 BL-551-410-02 Stud – Discharge Manifold 12


    4


    BL-551-410-03
    Stud – Threaded Ring    		  48
    5 BL-IN-416 Nut 84
    6 BL-551-405-04 Threaded Plug Retainer 6
    7 BL-551-405-03 Threaded Ring 9
    8 BL-551-422-02 Cylinder Head Plug 3
      BL-551-422-03 Cylinder Head Plug – Top (Included Items 8 & 16) 3
    9 BL-551-405-05 Threaded Liner Retainer 3
    10 BL-551-405-07 Lower Valve Guide 3
    11 BL-551-422-04 Retainer – Lower Valve Guide 3
    12 BL-BMT-1669-63-09 Seal – Cylinder Head Plug, Liner 9
    13 BL-IO-548 Seal – Discharge Manifold 3
    14 BL-IO-521 Seal – Suction Manifold 3
    15 BL-551-405-09 Valve Guide Bushing 6
    16 BL-551-405-06 Upper Valve Guide 3
