GARDNER DENVER PZ-7,PZ-8,PZ-9

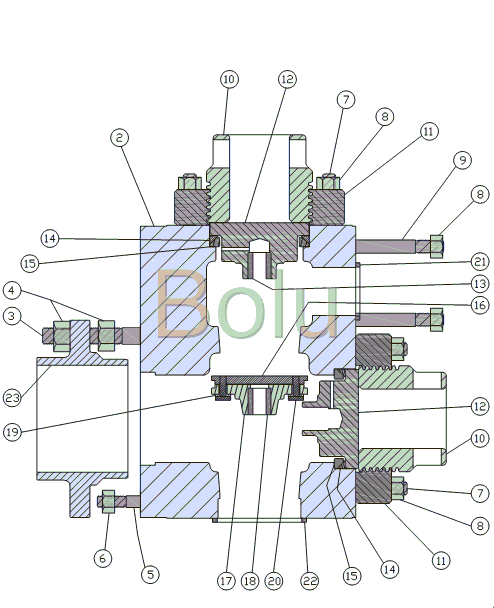

Item Part No. Description Qty per Pump 1 BL-205PZL029D Fluid Module, Studded (Included Items 2 – 9) (3) 2 Fluid Module, Only 3 3 BL Stud – Frame, Liner Clamp 24 4 BL-50B36 Nut – Frame, Liner Clamp 48 5 BL Stud – Frame 12 6 BL-50AQ30 Nut – Frame 12 7 BL-79AL6 Stud – Threaded Ring 48 8 BL-50B34 Nut – Threaded Ring, Discharge Manifold 60 9 BL-202PZL110 Stud – Discharge Manifold 12 10 BL-2011857 Cap – Valve Lock 6 11 BL-2011699 Threaded Ring 6 12 BL-2011860 Cover – Valve 6 13 BL-2007674 Valve Guide Bushing 3 14 BL-2011862 Gasket – Valve Cover 6 15 BL-2011861 Ring – Retaining / Valve Cover Gasket 6 BL-2011706 Valve Guide Assembly (Included Items 16 – 20) (3) 16 BL-2011701 Retainer Plate 3 17 BL-2011700 Valve Guide – Suction 3 18 BL-2007674 Valve Guide Bushing – Suction 3 19 BL-95W2 Lock Washer – Valve Guide / Suction 6 20 BL-655EE06S Bolt – Valve Guide / Suction 6 21 BL-25AL35 Gasket – Discharge Manifold 3 22 BL Gasket – Suction Manifold 3 23 BL-1PV14 Liner Clamp 3
