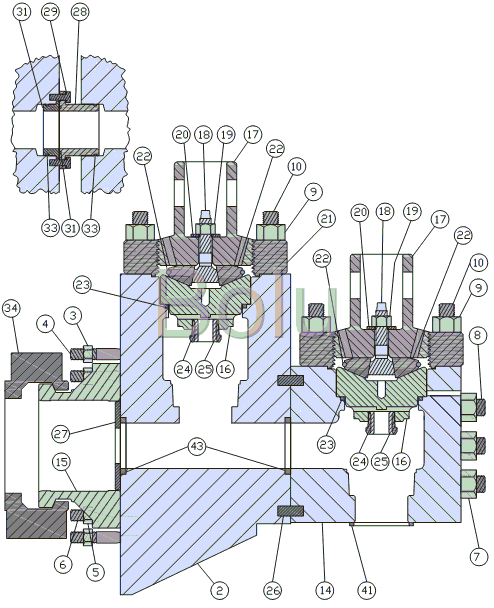

NATIONAL 8-P-80

Item

Part No.

Description

Qty

per Pump

1

BL-1291280

Discharge Module, Studded (Included Items 2 – 10)

(3)

2

BL-1291281

Discharge Module, Only

3

3

BL-6300180

Nut – Frame

24

4

BL-2408026

Stud – Frame

24

5

BL-6300120

Nut – Liner Bushing

18

6

BL-2408025

Stud – Liner Bushing

18

7

BL-6300241

Nut – Suction to Discharge Module

18

8

BL-2408034

Stud – Suction to Discharge Module

18

9

BL-6300220

Nut – Threaded Ring

72

10

BL-2408019

Stud – Threaded Ring

72

11

BL-1290338

Suction Module, Studded (Included Items 9, 10, 14)

(3)

14

BL-1290339

Suction Module, Only

3

15

BL-1291165

Bushing – Liner

3

16

BL-1290174

Seal Retainer

6

17

BL-1290307

Valve Cover

6

18

BL-1290178

Screw – Wedge Adjusting

6

19

BL-6300160

Nut – Wedge Adjusting

6

20

BL-1290315

Washer – Wedge Adjusting

6

21

BL-1290308

Threaded Ring

6

22

BL-1290376

Wedge Assembly

6

23

BL-1540126

Gasket – Valve Cover

6

24

BL-1292140

Holder – Valve Guide

6

25

BL-1292141

Insert – Valve Guide

6

26

BL-6511416

Pin, ⅞" × 2" Dowell

6

27

BL-1290357

1Plate – Wear

3

28

BL-1290342

Connector – Discharge

2

29

BL-7000305-11

Screw, ½" × 1½" Hex Head

16

30

BL-7619050

Washer, ½" Lock

16

31

BL-1290343

Adapter – Discharge Connector

2

32

BL-2410031-348

Packing, Rectangular

2

33

BL-2410031-427

Packing, Rectangular

4

34

BL-1291166

Clamp – Liner

3

35

BL-2402560

Stud – Discharge Spacer

16

36

BL-6300200

Nut – Discharge Spacer

16

41

BL-1590051

Seal – Suction Manifold

3

42

BL-1291286

Spacer – Discharge, Studded

2

43

BL-1290344

Seal – Module, Wear Plate

6
