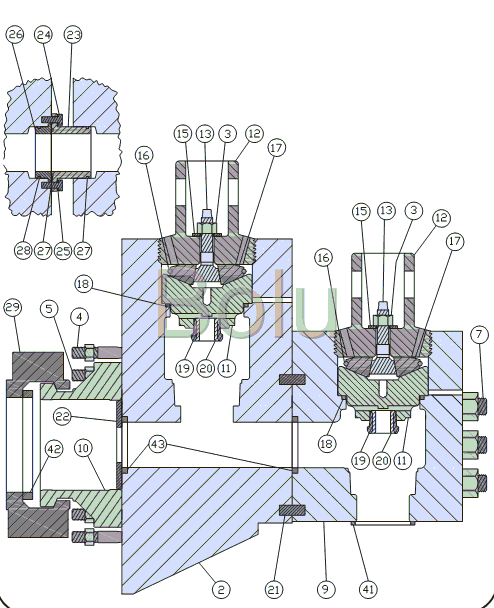

NATIONAL 7-P-50

Item

Part No.

Description

Qty

per Pump

1

BL-1294150

Discharge Module, Studded (Included Items 2 – 7)

(3)

2

BL-1294151

Discharge Module, Only

3

3

BL-6300160

Nut – Wedge Adjusting

24

4

BL-2408042

Stud w/Nut – Frame

24

5

BL-2408043

Stud w/Nut – Liner Bushing

18

7

BL-2408041

Stud w/Nut – Discharge to Suction

18

9

BL-1294156

Suction Module

3

10

BL-1294165

Bushing – Liner

3

11

BL-1294174

Seal Retainer

6

12

BL-1294172

Valve Cover

6

13

BL-1290178

Screw – Wedge Adjusting

6

15

BL-1290315

Washer – Wedge Adjusting

6

16

BL-1290181

Spring – Wedge Assembly

6

17

BL-1290376

Wedge Assembly

6

18

BL-1540126

Gasket – Valve Cover

6

19

BL-1292140

Holder – Valve Guide

6

20

BL-1292141

Insert – Valve Guide

6

21

BL-6511416

Pin, ⅞" × 2" Dowell

6

22

BL-1294160

1Plate – Wear

3

23

BL-1294170

Connector – Discharge

2

24

BL-7000305-10

Screw, ½" × 1½" Hex Head

16

25

BL-7602050

Washer, Spring Lock

16

26

BL-1294171

Adapter – Discharge Connector

2

27

BL-2410031-348

Packing, Rectangular

2

28

BL-2410031-427

Packing, Rectangular

4

29

BL-1294166

Clamp – Liner

3

34

BL-2402560

Stud, 1¼" × 6¼"

16

35

BL-6300200

Nut 1¼" Hvy. Hex

16

41

BL-1 540142

Seal – Suction Manifold

3

42

BL-1294168

Collar – Liner

3

43

BL-1294192

Seal – Module, Wear Plate

6
